About Graphics • umncvmstats

Most of the graphical functions we will use come from the ggplot2 package, though this package does have a few additions, including geom_beeswarm, scale_y_binary, geom_smooth_logistic, and hide_y_axis. See https://ggplot2.tidyverse.org/ for a full reference to the ggplot2 package.

The ggplot2 library uses a “grammar of graphics” to specify the aspects of a plot. The primary idea is that one first specifies a data set that, then maps variables from that data set to a specific aesthetic attributes of the plot, and then chooses which geometric objects to display. The plot can also optionally be facetted by other variables, have the scales or labels changed, and more.

The following pseudo-code plots data from a data set data_set, and maps the variable x_var to the x aesthetic, y_var to the y aesthetic (more as needed), and then adds a geometric object (XXX); these could be points, lines, or bars. You can then optionally facet the plot, change the scales, change the labels, and more.

ggplot(data_set,
       mapping=aes(x=x_var, y=y_var, fill=fill_var, color=color_var)) +
  geom_XXX() +
  facet_XXX() +
  scale_XXX() +
  labs(...)

The syntax can vary in a number of ways; one common variation is to add the aesthetic mapping instead of using the mapping parameter, like this.

ggplot(data_set) +
  aes(x=x_var, y=y_var, fill=fill_var, color=color_var) + ...

Combining plots

The patchwork package allows one to combine together several plots from ggplot using the mathematical operators of + (for side by side) and / (for above and below). For more control, see the package documentation.

I’ll use this functionality in this document to display several examples side by side.

Scatterplots

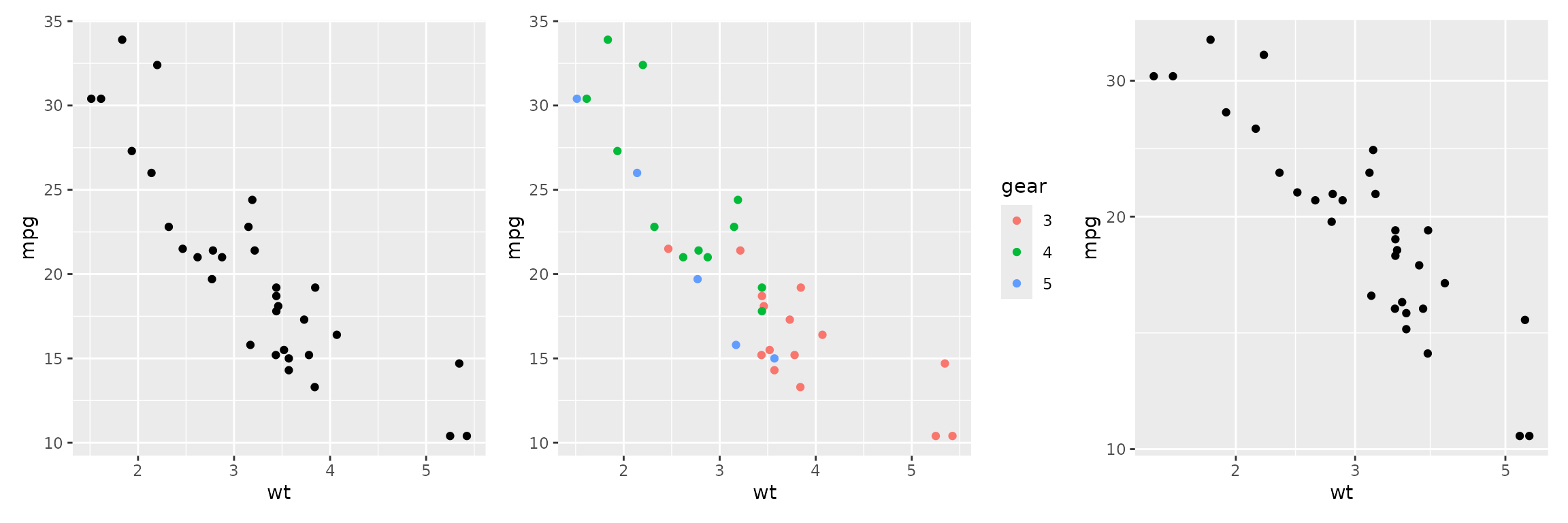

With numeric variables mapped to both x and y, using geom_point will give a scatterplot; mapping a categorical variable to color will color the points by that variable.

One can plot on the log scale by adding scale_x_log10() or scale_y_log10().

plot1 <- ggplot(mtcars2) + aes(x=wt, y=mpg) + geom_point()
plot2 <- ggplot(mtcars2) + aes(x=wt, y=mpg, color=gear) + geom_point()
plot3 <- plot1 + scale_x_log10() + scale_y_log10()
plot1 + plot2 + plot3

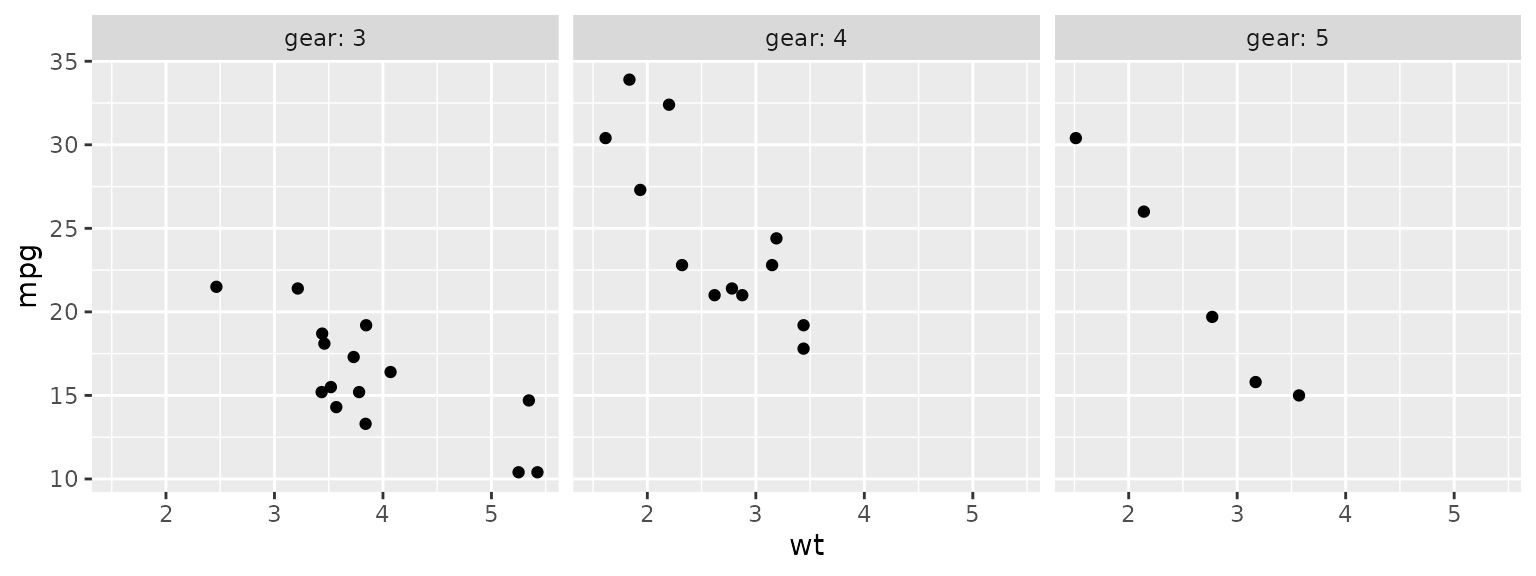

One can also facet by a categorical variable; use the optional labeller parameter to include the variable name in the label.

ggplot(mtcars2) + aes(x=wt, y=mpg) + geom_point() +
  facet_wrap(~gear, labeller = label_both)

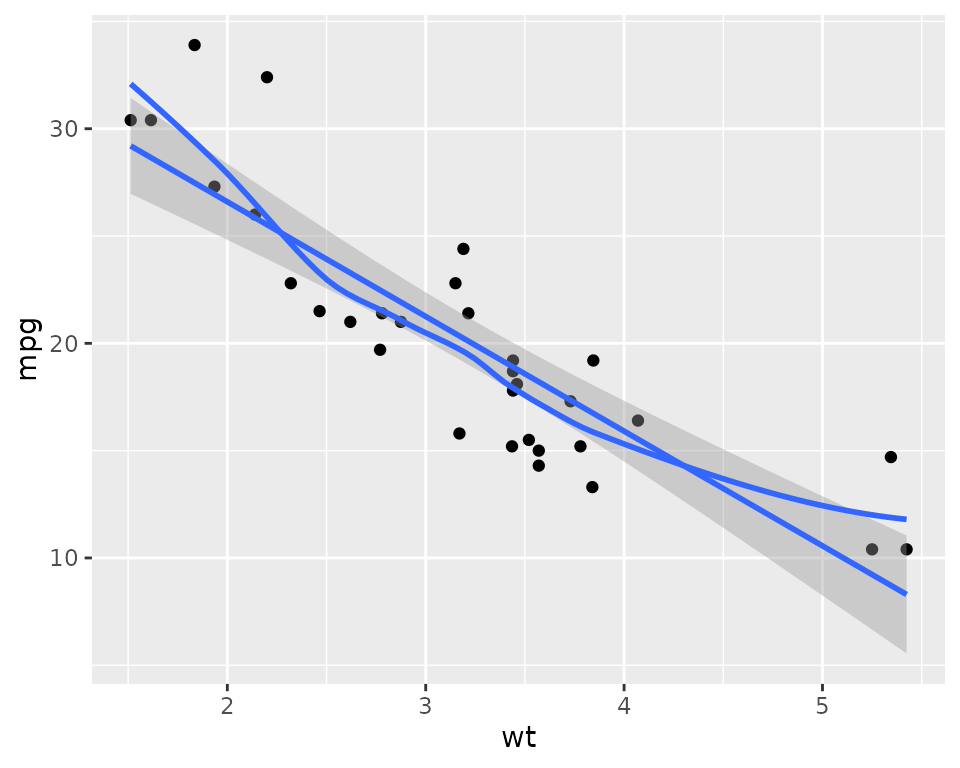

One can also add a smooth to the plot using stat_smooth. By default, this is allowed to bend with the data and includes a 95% confidence region. To use a linear fit, use method="lm", and to exclude the confidence region, use se=FALSE. Here two smooths, one of each type, are added to the plot.

ggplot(mtcars2) + aes(x=wt, y=mpg) + geom_point() +
  stat_smooth(method="lm") +
  stat_smooth(se=FALSE)

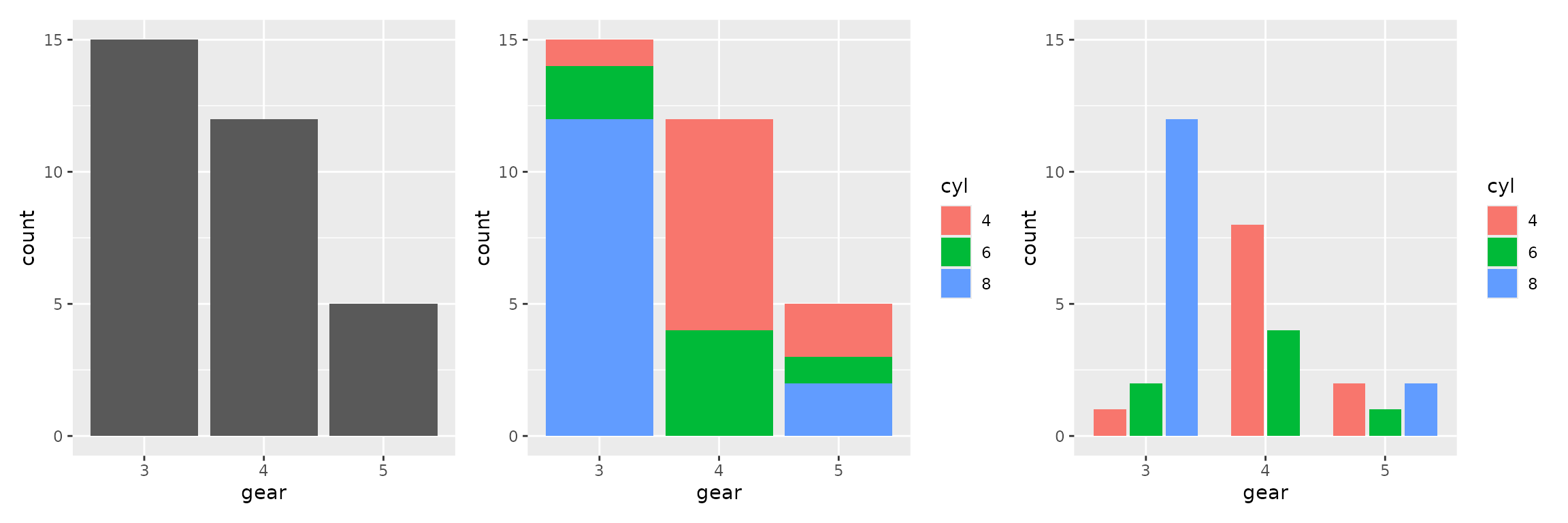

Bar plots

Bar plots show the count of each level of a categorical variable; no y variable is needed as the count is computed.

Use geom_bar for a single bar for each level of the desired variable, use the fill aesthetic to color the portion of each bar by another variable, and use geom_bars to put these bars side by side.

Use scale_y_continuous with the breaks or limits parameters to change the tick locations or lower/upper limits.

These plots can also be faceted as desired.

plot1 <- ggplot(mtcars2) + aes(x=gear) + geom_bar()
plot2 <- ggplot(mtcars2) + aes(x=gear, fill=cyl) + geom_bar()
plot3 <- ggplot(mtcars2) + aes(x=gear, fill=cyl) + geom_bars() +
  scale_y_continuous(breaks=c(0,5,10,15), limits = c(0, 15))

plot1 + plot2 + plot3

Histograms and Density Plots

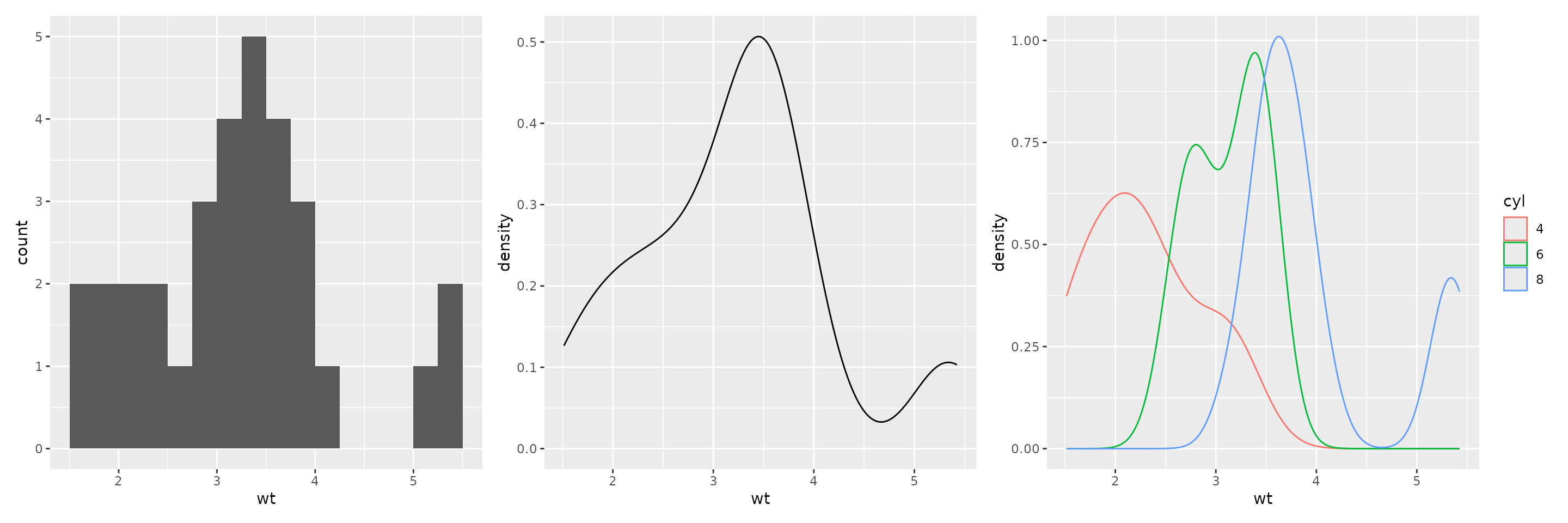

These plots also only need an x mapping; the y will be computed appropriately.

Use geom_histogram to make a histogram; use parameters binwidth and boundary to control the bins.
Use geom_density to make a density plot; use the color aesthetic to do separately by another variable.

These plots can also be faceted as desired.

plot1 <- ggplot(mtcars2) + aes(wt) + geom_histogram(binwidth=0.25, boundary=0)
plot2 <- ggplot(mtcars2) + aes(wt) + geom_density()
plot3 <- ggplot(mtcars2) + aes(wt, color=cyl) + geom_density()

plot1 + plot2 + plot3

Boxplots

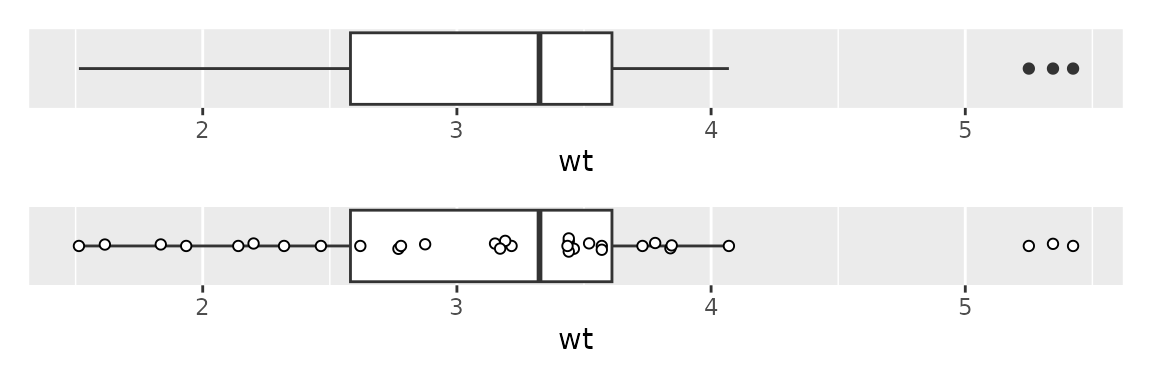

To make a boxplot, use geom_boxplot(); usually this has a continuous y and a categorical x.

However, one can flip x and y to plot horizontally, and if one wants a boxplot for just a single continuous variable, say var, use x=var, y=0 to plot horizontally, and add hide_y_axis().

Boxplots can hide information, so it’s nice to add points on top of the boxplot. To do so,

first turn off outliers using geom_boxplot(outlier.shape = NA)
then add swarmed points with geom_beeswarm; use the spacing parameter to control the swarm; using the parameters pch=21 and fill="white" also help to make the swarm more apparent

These can be facetted or put on the log scale, as described above.

plot1 <- ggplot(mtcars2) + aes(x=wt) +
  geom_boxplot() +
  hide_y_axis()
plot2 <- ggplot(mtcars2) + aes(x=wt, y=0) +
  geom_boxplot(outlier.shape = NA) +
  geom_beeswarm(spacing=3, pch=21, fill="white") +
  hide_y_axis()
plot1 / plot2

plot1 <- ggplot(mtcars2) + aes(x=cyl, y=wt) +
  geom_boxplot()
plot2 <- ggplot(mtcars2) + aes(x=cyl, y=wt) +
  geom_boxplot(outlier.shape = NA) +
  geom_beeswarm(spacing=2, pch=21, fill="white")
plot1 + plot2

Logistic Regression plots

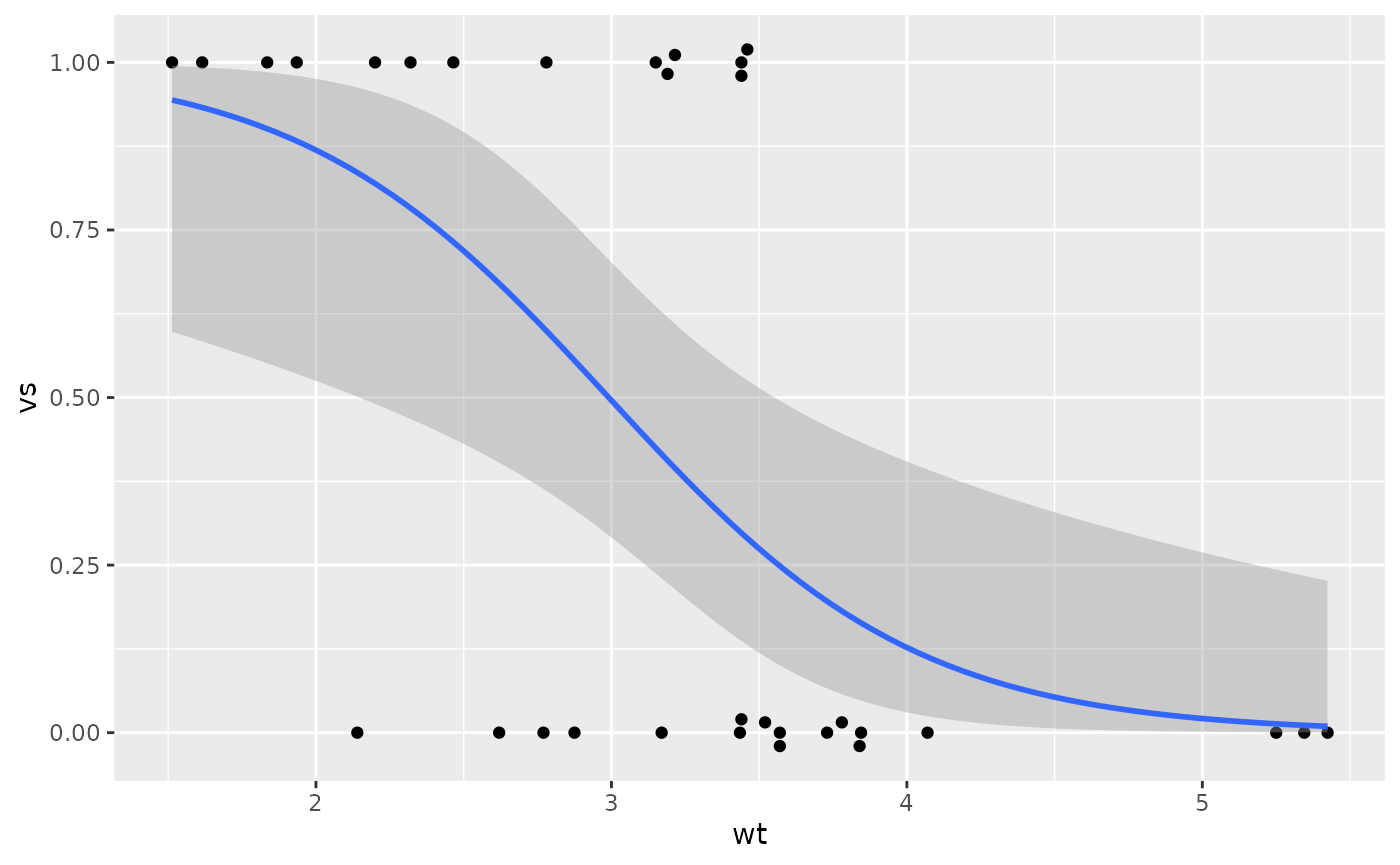

For a logistic regression, where the response variable (y) is binary, and the explanatory variable (x) is numeric, use geom_beeswarm so that points don’t overlap, and specify orientation="y" so that they swarm in the right direction.

Additionally, use scale_y_binary to put the response on a 0-1 proportion scale, and optionally add a smooth using geom_smooth_logistic. For reasons I don’t understand, you also need the aesthetic group=1 for the smooth to work properly.

You can map a variable to the color aesthetic to color the points and do the smooth by another variable; if you do, set group to be the same variable as color.

ggplot(mtcars2) + aes(x=wt, y=vs, group=1) +
  geom_beeswarm(orientation="y", spacing=2) +
  scale_y_binary() +
  geom_smooth_logistic()

Estimates with error bars

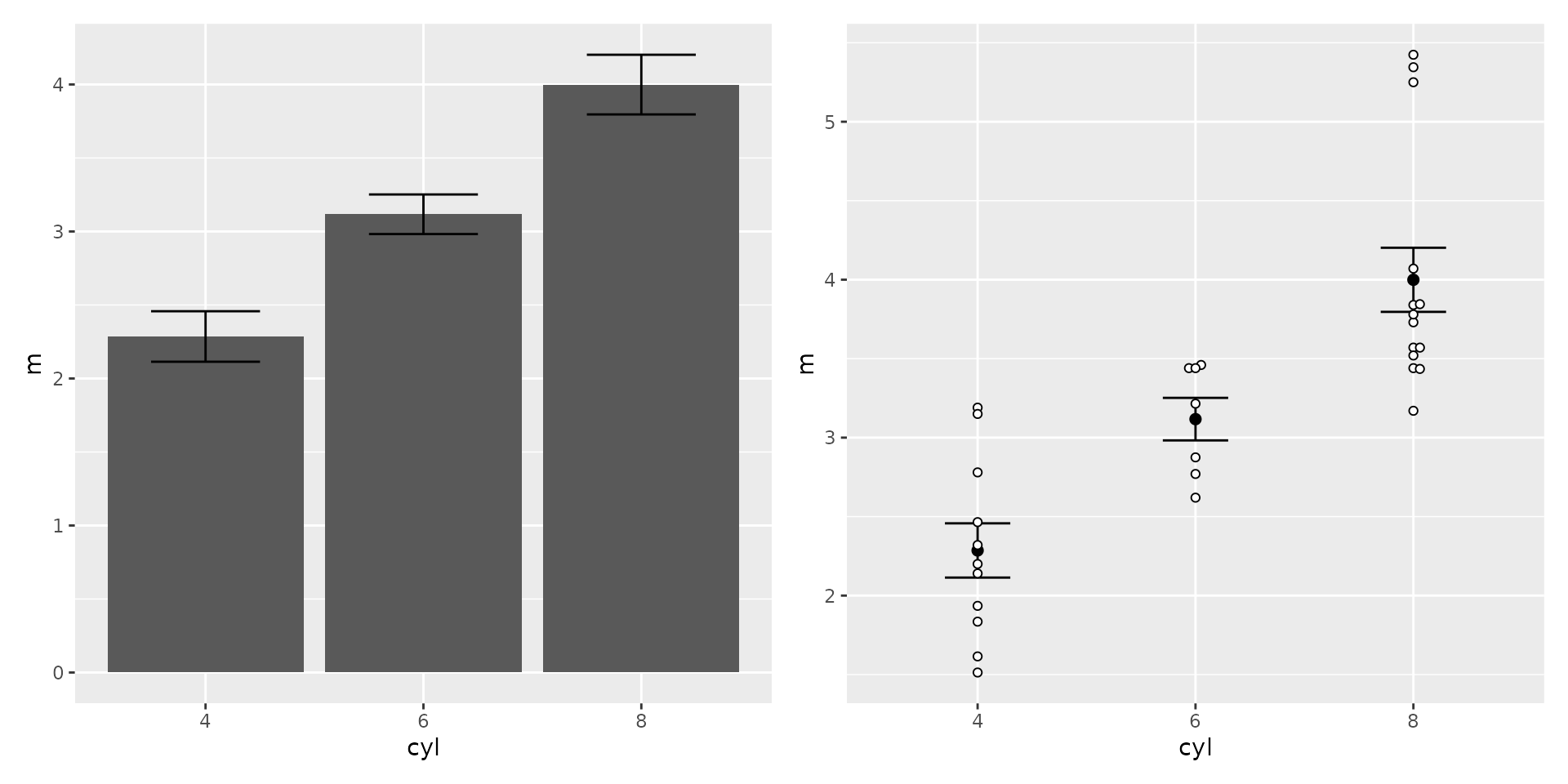

Sometimes one wishes to show summary information in a plot. Here I’ll calculate the mean weight, and standard error, by the number of cylinders.

wt_mse <- mtcars2 |> summarize(m=mean(wt), se=sd(wt)/sqrt(n()), .by=cyl)

To show the value as a bar, use geom_col; this is similar to geom_bar except we are specifying the height of the bar instead of having R compute the count.

To show error bars, use geom_errorbar and map values to the aesthetics ymin and ymax. These can be computed within the plotting function, as is here. The width parameter controls with width of the bars (left to right).

Bars like this are somewhat frowned upon in many fields for a number of reasons we may discuss. (This is especially true if the error bar just goes above the height of the bar; note that these go both above and below).

So it is generally preferred to use points with error bars, and it can be nice to add the points too, so that one can see the spread of the data as well. To do that we’ll use geom_point for the mean, as in a scatterplot (though changing the parameter size to make it stand out), and geom_beeswarm for the data points.

However, we do need to use a syntax variant, as we want the error bar and mean point to use variables from wt_mse, and we want the beeswarm to use data from mtcars2. Additionally, the variable for the y aesthetic differs in these two data sets. To accomplish this, we specify only the aesthetics that apply to all in the main aes, and use additional aes functions within the appropriate geom’s. And while we also specify the wt_mse as the data set, as before, we overrule this in geom_beeswarm by specifying a new data set there.

plot1 <- ggplot(wt_mse) + aes(cyl, m, ymin=m-se, ymax=m+se) +
  geom_col() +
  geom_errorbar(width=0.5)
plot2 <- ggplot(wt_mse) + aes(x=cyl) +
  geom_errorbar(aes(ymin=m-se, ymax=m+se), width=0.3) +
  geom_point(aes(y=m), size=2) +
  geom_beeswarm(aes(y=wt), data=mtcars2, pch=21, fill="white")
plot1 + plot2

Labels

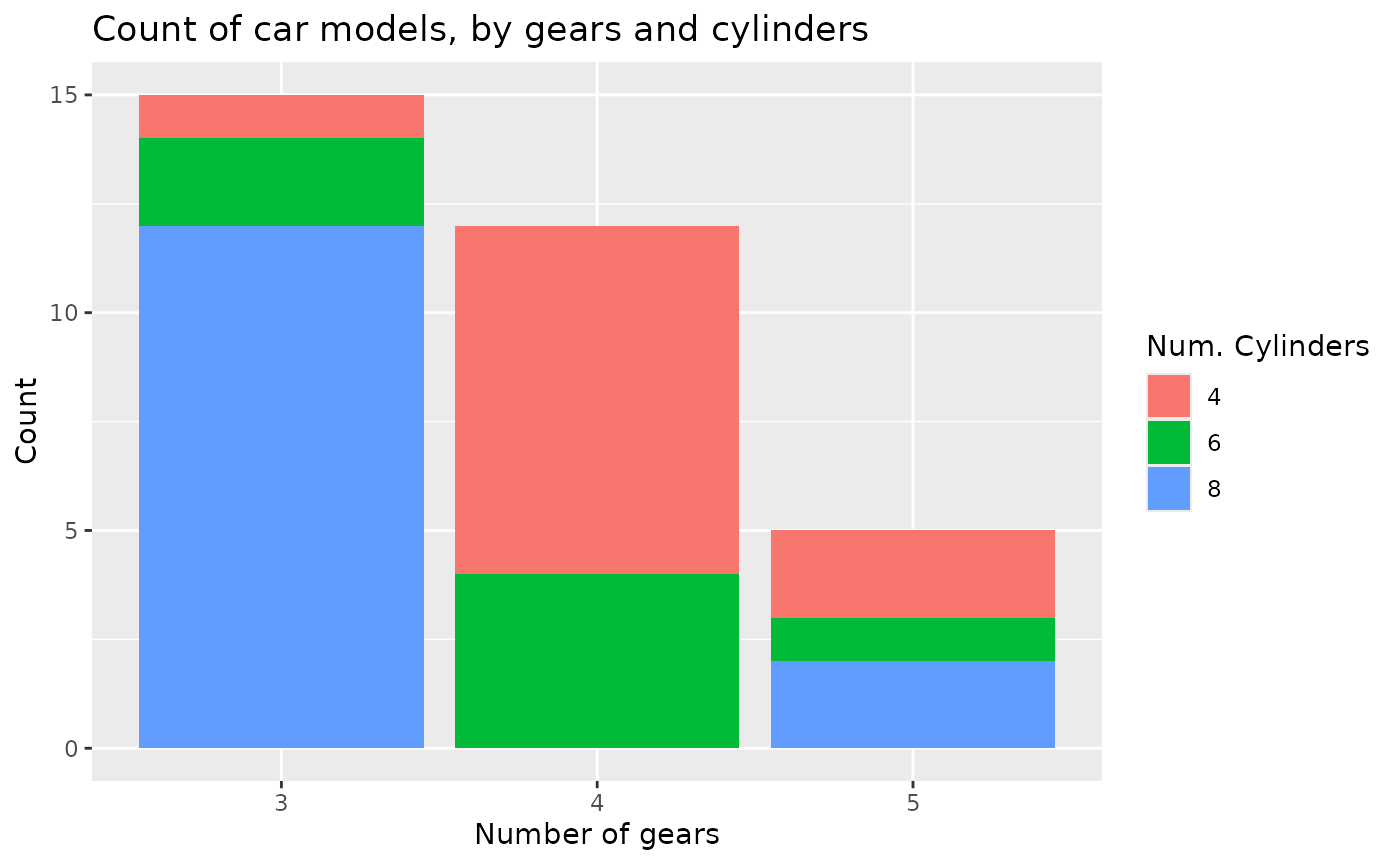

To change labels, use the labs function, and specify the label for the particular aesthetic you want to label differently. Additionally, one can add a title and a subtitle.

ggplot(mtcars2) + aes(x=gear, fill=cyl) +
  geom_bar() +
  labs(x="Number of gears",
       y="Count",
       fill="Num. Cylinders",
       title="Count of car models, by gears and cylinders")

Resizing plots in Quarto

To resize a plot in Quarto output, use the fig-width and fig-height options at the top of the chunk. The default size is usually about 6 by 6. One usually has to use trial and error to determine the best height and width.

This is also the easiest way to change the size of the text in a plot; when a plot is made larger, the text stays the same size, so is smaller relative to the rest of the plot.

#| fig-width: 5
#| fig-height: 4

Saving plots

To save a plot as a separate file, first assign the plot to a variable name and then use ggsave, specifying the filename, and optionally the width and height.

Filetype options include pdf, tiff, and png; for tiff and png, the dpi parameter may be helpful to control the resolution, and for tiff, compression="rle" should help with the file size.

As with reading data, using here is recommended.

myplot <- ggplot(mtcars2) + aes(x=wt, y=mpg) + geom_point()
ggsave(myplot, filename=here("myplot.pdf"), width=6, height=6)
